TP Link 10/100Mbps Multi-Mode Media Converter

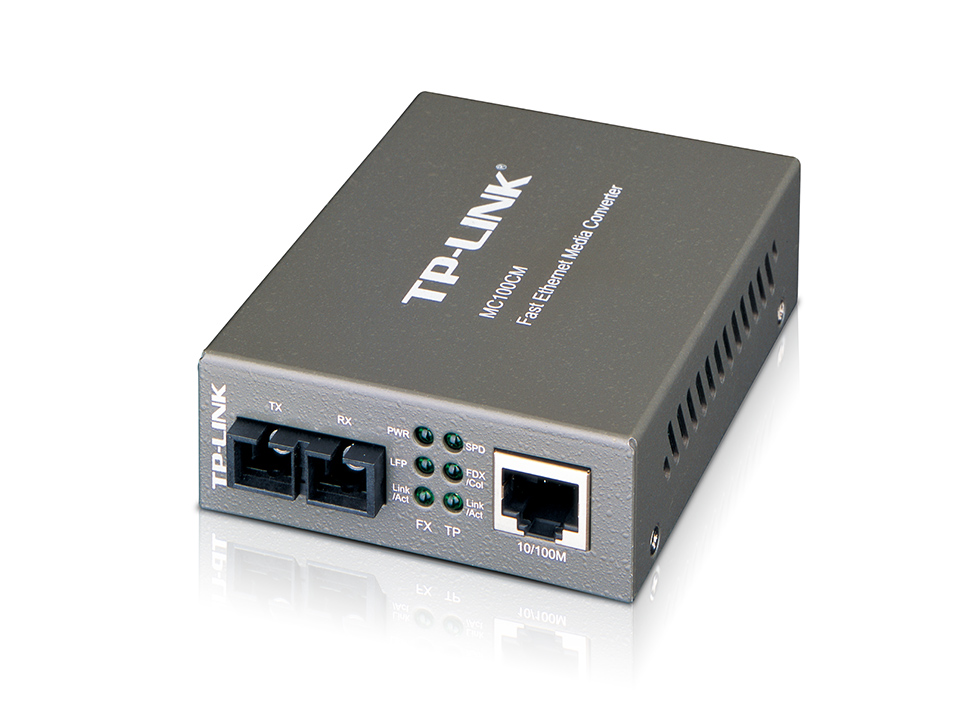

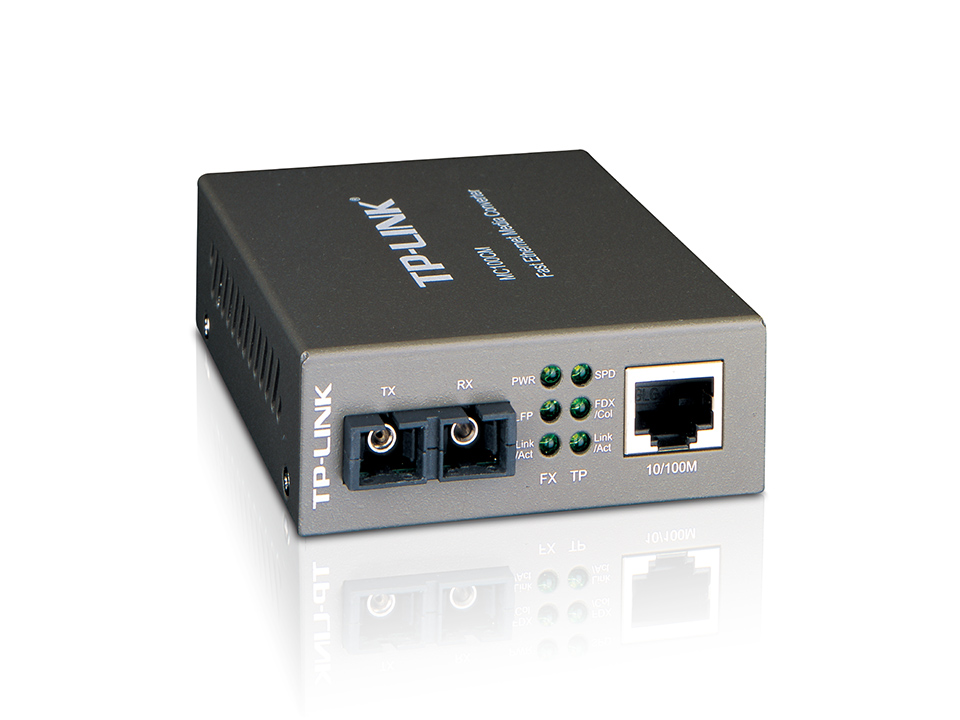

TP-Link 10/100 Mbps Multi-Mode Media Converter – MC100CM
Reliable Fiber-to-Ethernet Conversion for Multi-Mode Optical Links

Extend your network reach, bridge copper and fiber infrastructure, and maintain high-quality connectivity with the TP-Link MC100CM Multi-Mode Media Converter. Built on the IEEE 802.3u standard and tailored for multi-mode fiber environments, this converter supports 10/100 Mbps Ethernet and helps you link disparate network segments without complex configuration.

✅ Key Features & Benefits

• Fully complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, enabling seamless conversion between copper Ethernet and multi-mode fiber. TP-Link+2technokings.pk+2

• Supports Auto-Negotiation of Half-Duplex and Full-Duplex modes on the Ethernet port for flexible deployment. technokings.pk+1

• Single-mode fiber distance up to 2 km (approx) when used with correct multi-mode fiber cable and conditions, enabling efficient bridging of network locations. TP-Link+1

• Link Fault Pass-Through and Far-End Fault detection to help minimize data loss in the event of fiber or copper link failure. technokings.pk

• Compact and low-power design (max ~2.5 W) making it ideal for deployment in racks, desktops or distributed network cabinets. technokings.pk+1

• Easy plug-and-play installation—no chassis required though compatible with optional rack-mount chassis for multi-unit installations. TP-Link+1

📋 Technical Specifications (Summary)

• Ports: 1 × RJ-45 10/100 Mbps (Auto-MDI/MDIX), 1 × SC/UPC Multi-mode fiber 100 Mbps (100Base-FX) technokings.pk+1

• Wavelength: 1310 nm on transceiver link. TP-Link

• Max Fiber Distance: Up to ~2 km using multi-mode fiber under suitable conditions. TP-Link-Pakistan+1

• Network Media:

  • Copper: UTP Cat3/4/5 or STP up to 100 m. TP-Link

  • Fiber: Multi-mode 100BASE-FX media. technokings.pk

• Indicators: PWR, FDX/Col, Link/Act, SPD (LEDs) technokings.pk

• Dimensions: 94.5 × 73.0 × 27.0 mm (3.7″ × 2.9″ × 1.1″) TP-Link

• Power Consumption: Typical ~2.5 W technokings.pk

• Operating Conditions: Operating Temp 0 °C–40 °C; Storage Temp –40 °C–70 °C; Humidity 10%–90% non-condensing technokings.pk

🏢 Ideal Use Cases

• Bridging network connections between buildings or across campuses where copper Ethernet alone cannot reach.

• Deploying CCTV/IP-camera systems requiring long-reach fiber cabling and remote power/data links.

• Connecting remote switches or network segments over multi-mode fiber in industrial or commercial environments.

• Reducing cable infrastructure cost by converting existing copper networks to fiber links while maintaining Ethernet end-points.

🧾 Why Choose the MC100CM?

If your network demands reliable, long-reach conversion from Ethernet to multi-mode fiber—especially at 10/100 Mbps speeds—the TP-Link MC100CM offers a proven, simple, and cost-effective solution. With IEEE standard support, fault-tolerance features, and compact design, it fits neatly into both new installations and network upgrade projects.
