TP Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

High Power • Smart Management • Enterprise-Level Gigabit Performance

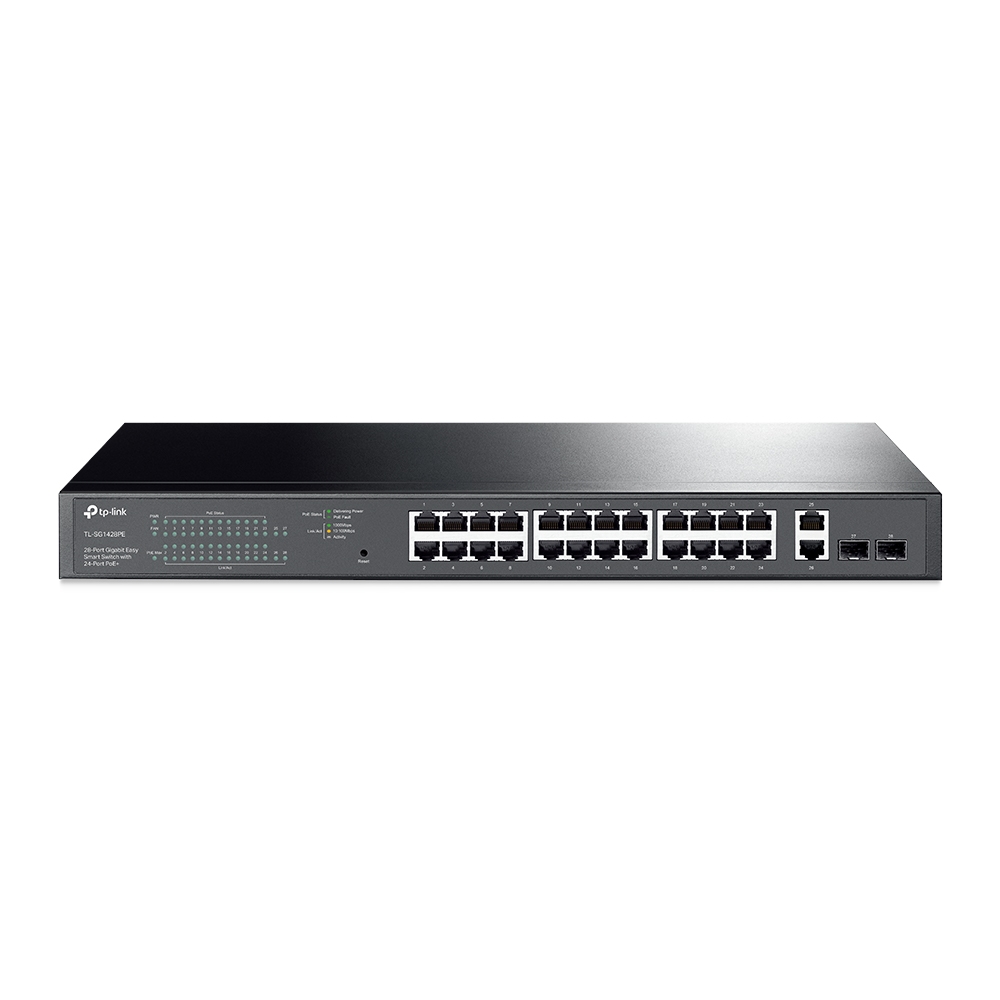

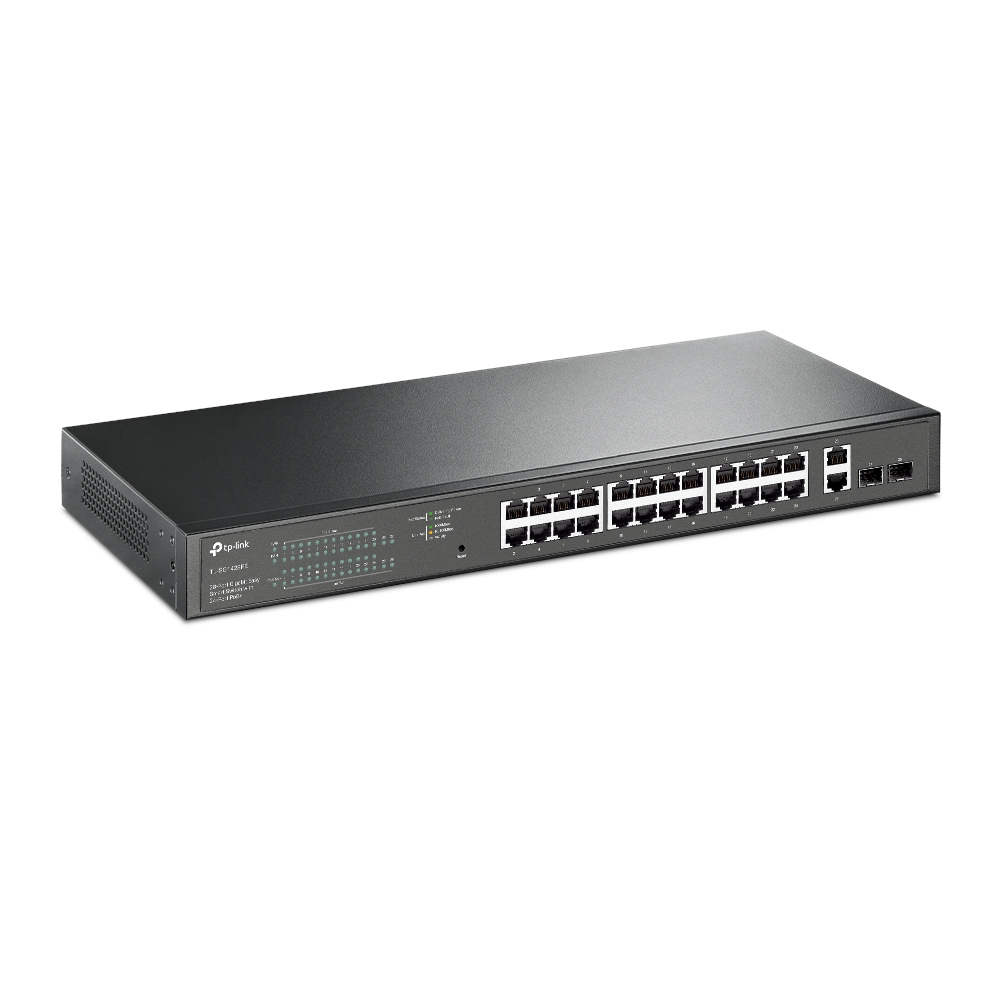

The TP-Link TL-SG1428PE is a high-performance 28-Port Gigabit Easy Smart Switch engineered for seamless, stable, and scalable network expansion. With 24 PoE+ ports and 4 additional Gigabit SFP/RJ45 uplink ports, it delivers robust data and power connectivity for IP surveillance, wireless coverage, and VoIP systems—all in one efficient device.

Featuring a total PoE power budget of up to 250W, the TL-SG1428PE eliminates the need for multiple power adapters, making it an ideal solution for businesses, schools, offices, and hospitality environments seeking reliable network performance and centralized power distribution.

⚙️ 28-Port Gigabit Connectivity

• Equipped with 28 Gigabit RJ45 ports, including 24 PoE+ ports and 4 non-PoE uplink ports.

• Supports full wire-speed forwarding to ensure smooth and reliable data flow.

• 56 Gbps switching capacity guarantees high performance for demanding applications.

• Ideal for bandwidth-intensive tasks like HD video streaming, cloud access, and large file transfers.

⚡ Power over Ethernet Plus (PoE+)

• Complies with IEEE 802.3af/at PoE+ standards, providing up to 30W per PoE port.

• Total PoE power budget: 250W, sufficient to power multiple devices simultaneously.

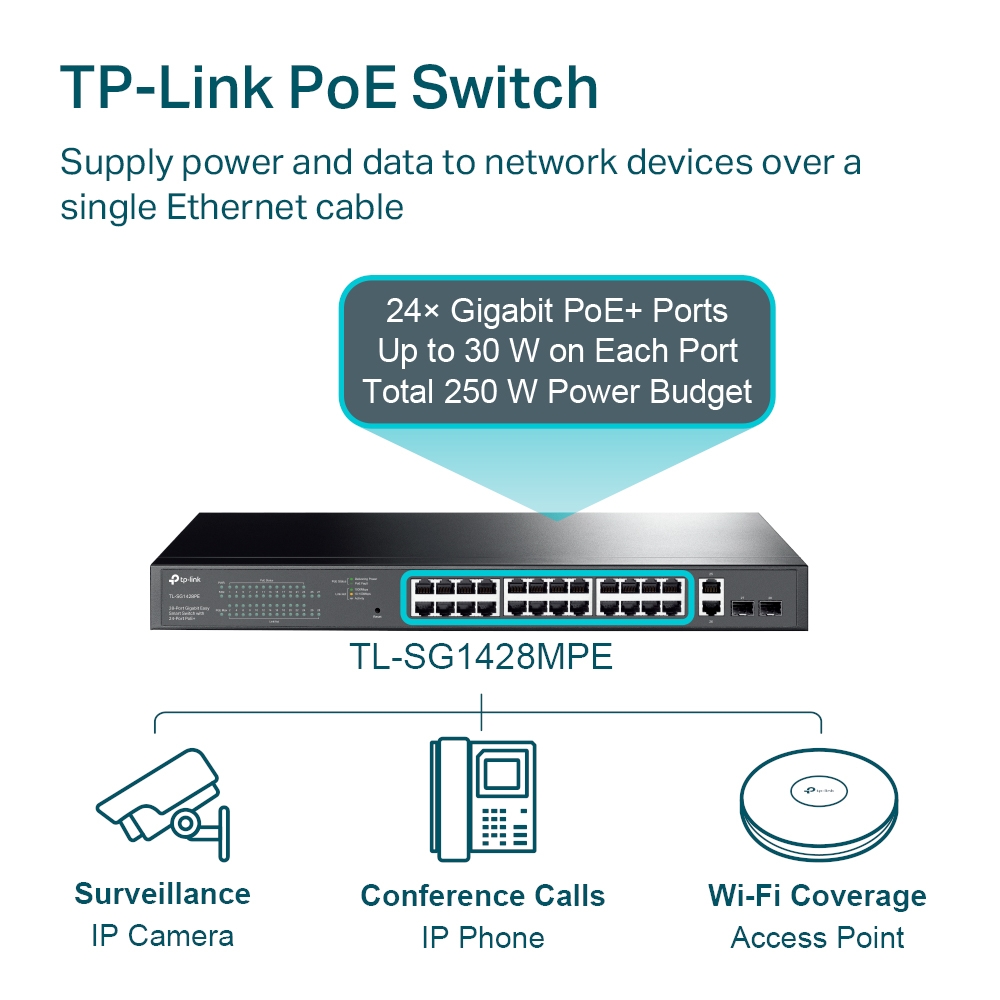

• Supports IP cameras, wireless access points, VoIP phones, and IoT endpoints directly via Ethernet cables.

• Simplifies installation and reduces clutter by eliminating the need for additional power adapters.

• Intelligent power detection ensures each device receives the optimal wattage.

🧠 Easy Smart Management

• Provides enhanced configuration through TP-Link Easy Smart Configuration Utility or user-friendly web interface.

• Supports Port-based VLAN, 802.1Q VLAN, and QoS (Quality of Service) for traffic optimization.

• IGMP Snooping improves network efficiency in multicast applications like IPTV.

• Port Mirroring, Loop Prevention, Cable Diagnostics assist in quick troubleshooting and optimization.

• Offers PoE Auto Recovery—automatically reboots unresponsive PoE devices without manual intervention.

🔋 Intelligent Power Allocation

• When total PoE power consumption exceeds the limit, the switch intelligently manages power across ports.

• Prioritizes high-importance devices like IP cameras or access points.

• Provides overload protection, short-circuit safety, and thermal stability for 24/7 reliable operation.

• Reduces downtime and improves overall network efficiency.

🌐 High-Performance Network Architecture

• Non-blocking switching design ensures maximum throughput for every port.

• IEEE 802.3x Flow Control (Full Duplex) and Backpressure (Half Duplex) keep data transmission stable under heavy loads.

• Optimized for real-time applications such as VoIP calls, video monitoring, and remote collaboration.

🧱 Durable Rackmount Metal Design

• Constructed with a sturdy metal housing for enhanced durability and long-term performance.

• Standard 19-inch rackmount design suitable for professional network cabinets.

• Fanless or low-noise cooling ensures quiet, reliable operation in office environments.

• Built for continuous operation under demanding business conditions.

💡 Energy-Efficient & Eco-Friendly

• Integrated TP-Link Green Ethernet technology automatically reduces power usage.

• Detects link status and cable length to optimize power consumption.

• Lowers operational costs while maintaining maximum performance.

• Perfect for businesses aiming to achieve sustainable IT infrastructure.

🔍 Comprehensive LED Indicators

• Dedicated LEDs for Link/Act, PoE, Power, and Speed provide real-time status monitoring.

• Simplifies troubleshooting and network health assessment.

  💼 Key Highlights

  • 28-Port Gigabit Easy Smart Switch with 24 PoE+ ports

  • 250W total PoE power budget, 30W max per port

  • Gigabit speeds for high-performance business networking

  • VLAN, QoS, IGMP Snooping for advanced traffic control

  • PoE Auto Recovery and Intelligent Power Allocation

  • Plug and Play with optional smart configuration

  • Rackmount-ready, robust metal body for durability

  • Green Ethernet technology for reduced power use

  • Reliable, quiet operation for office environments
